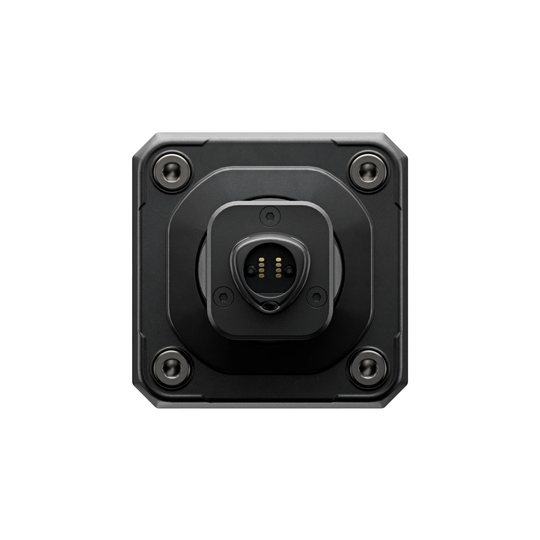

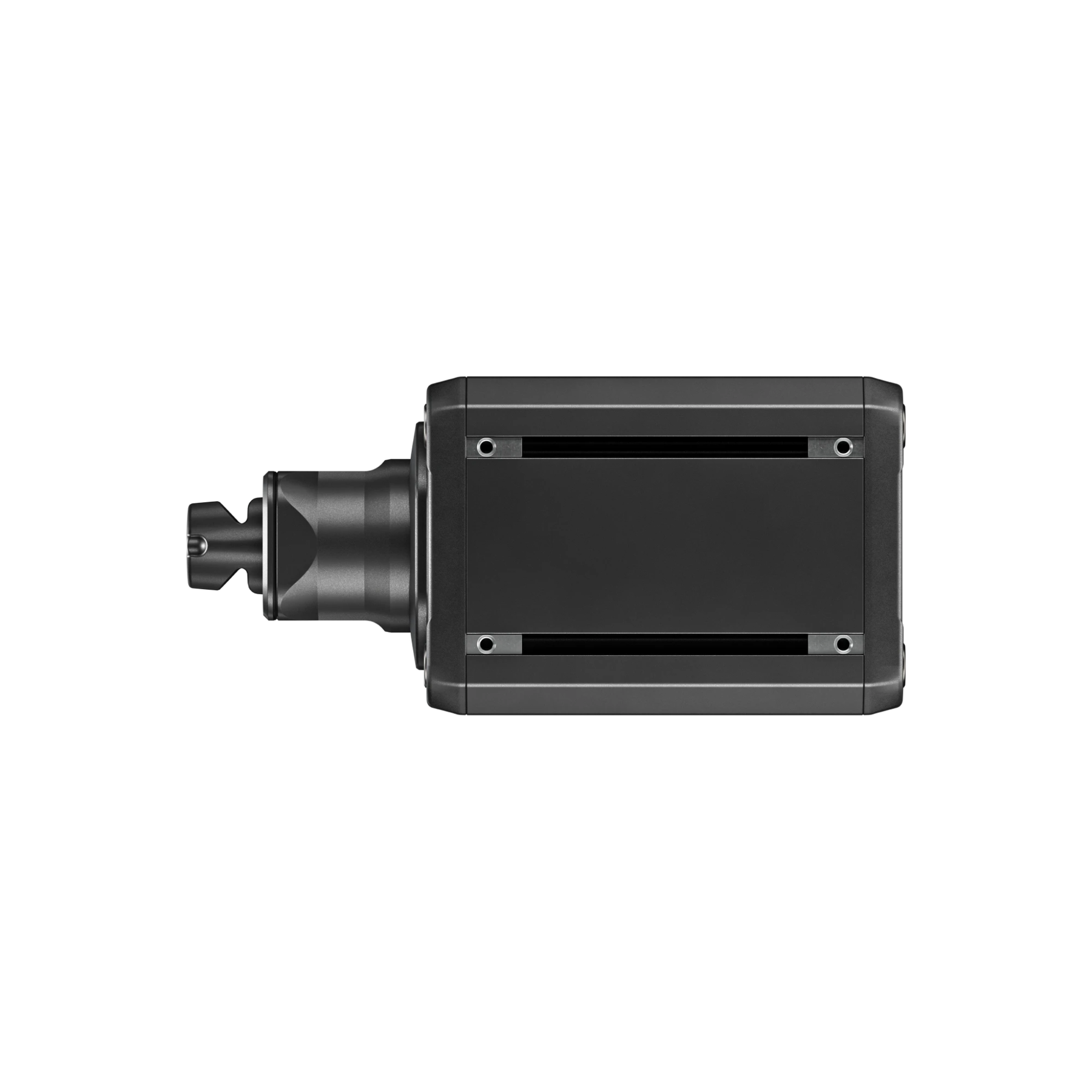

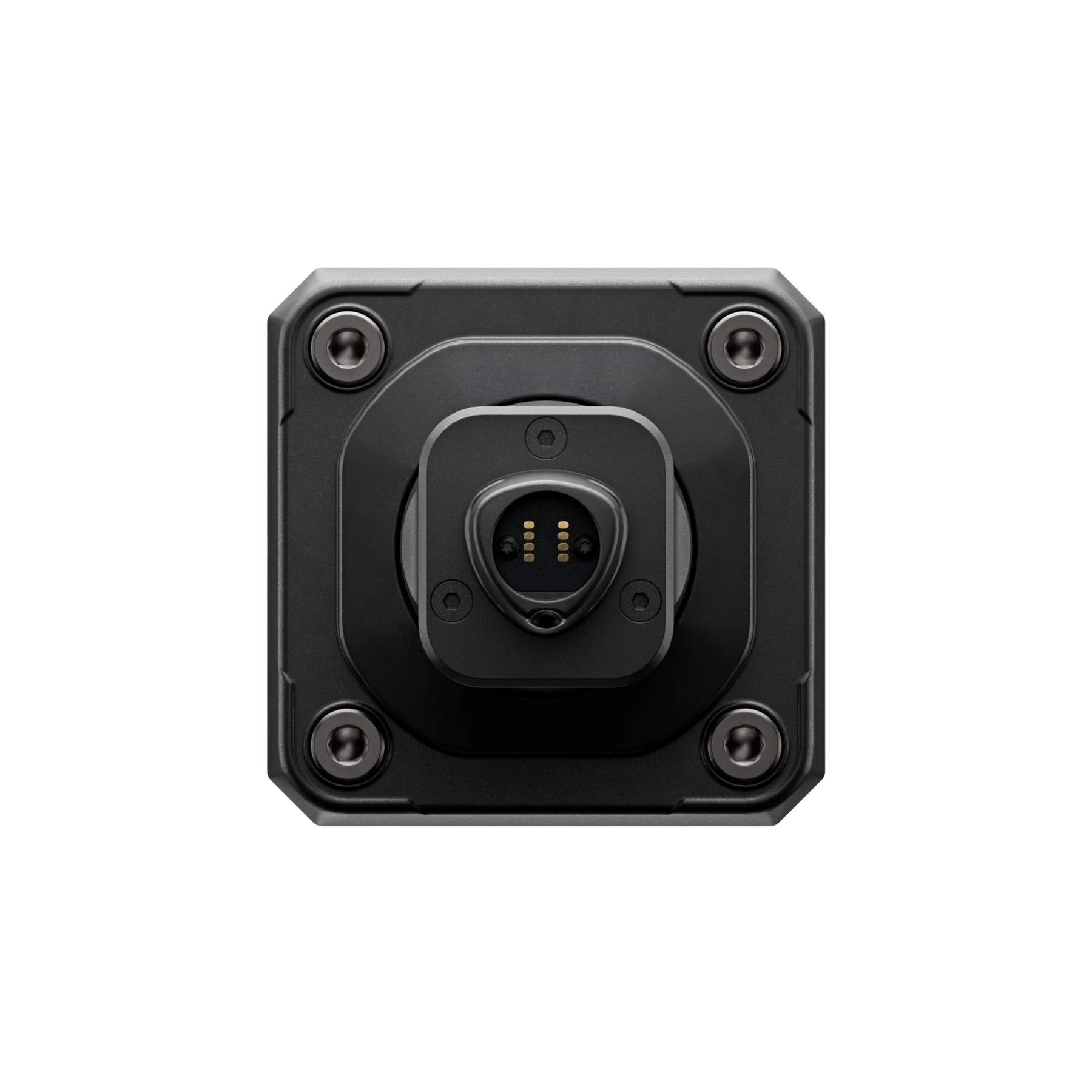

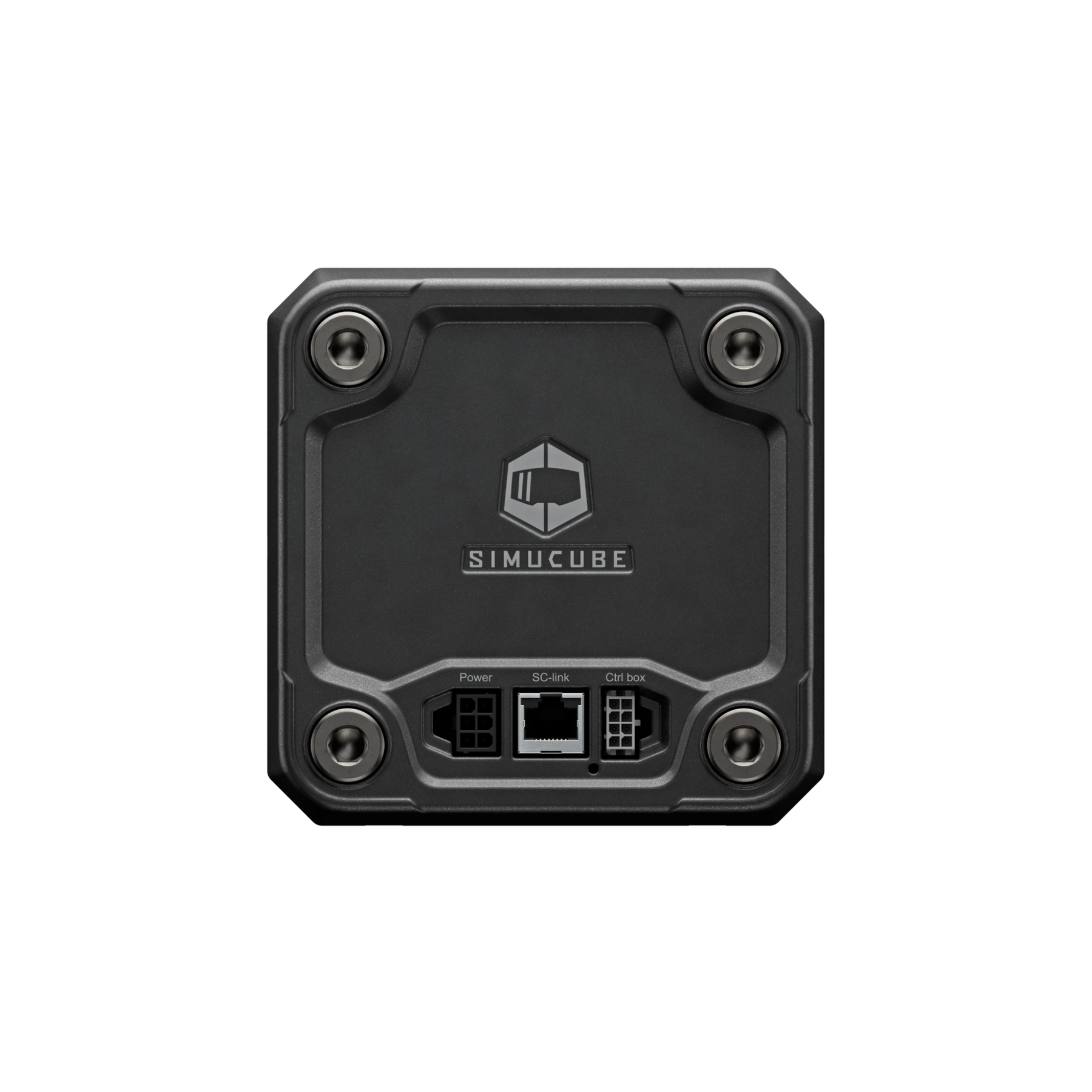

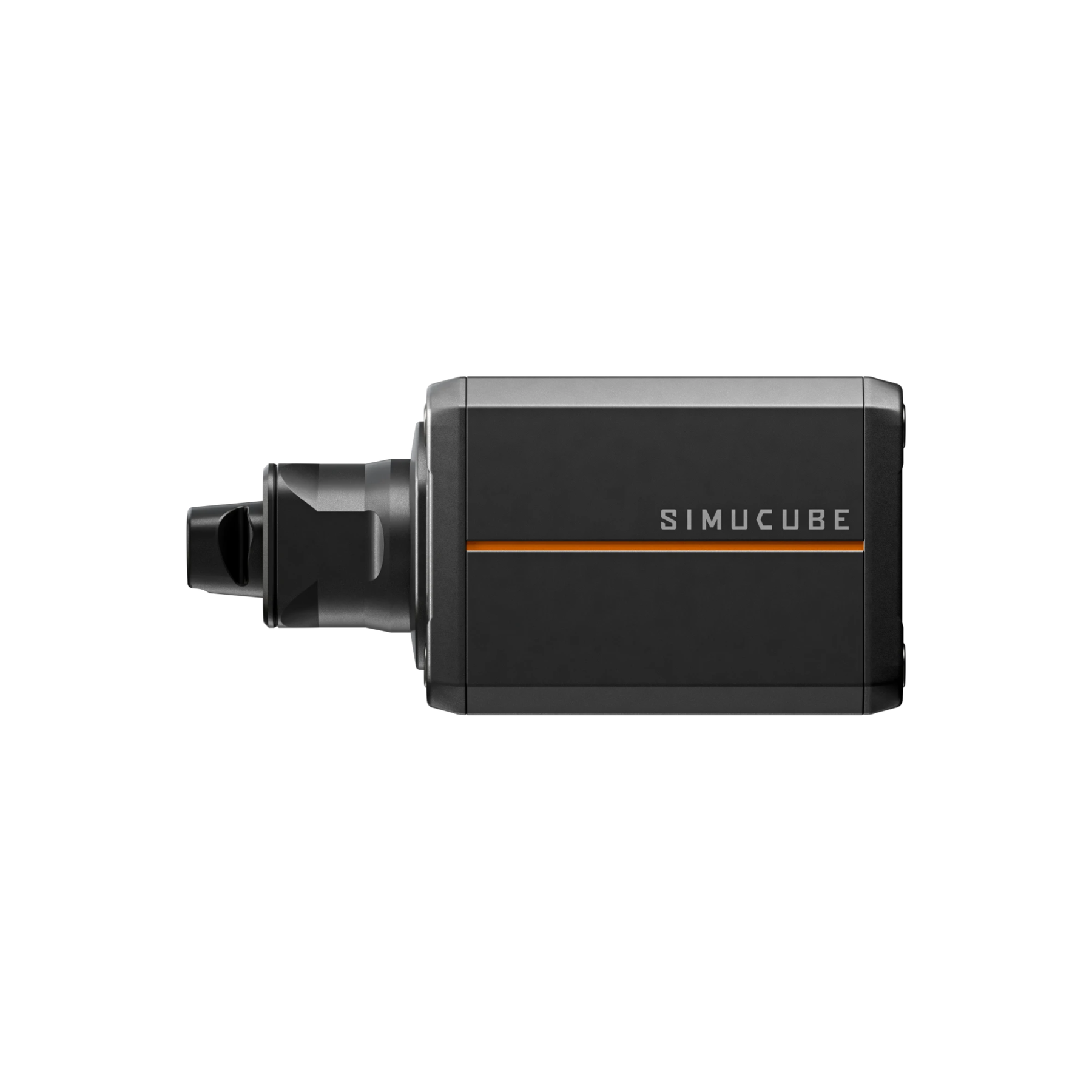

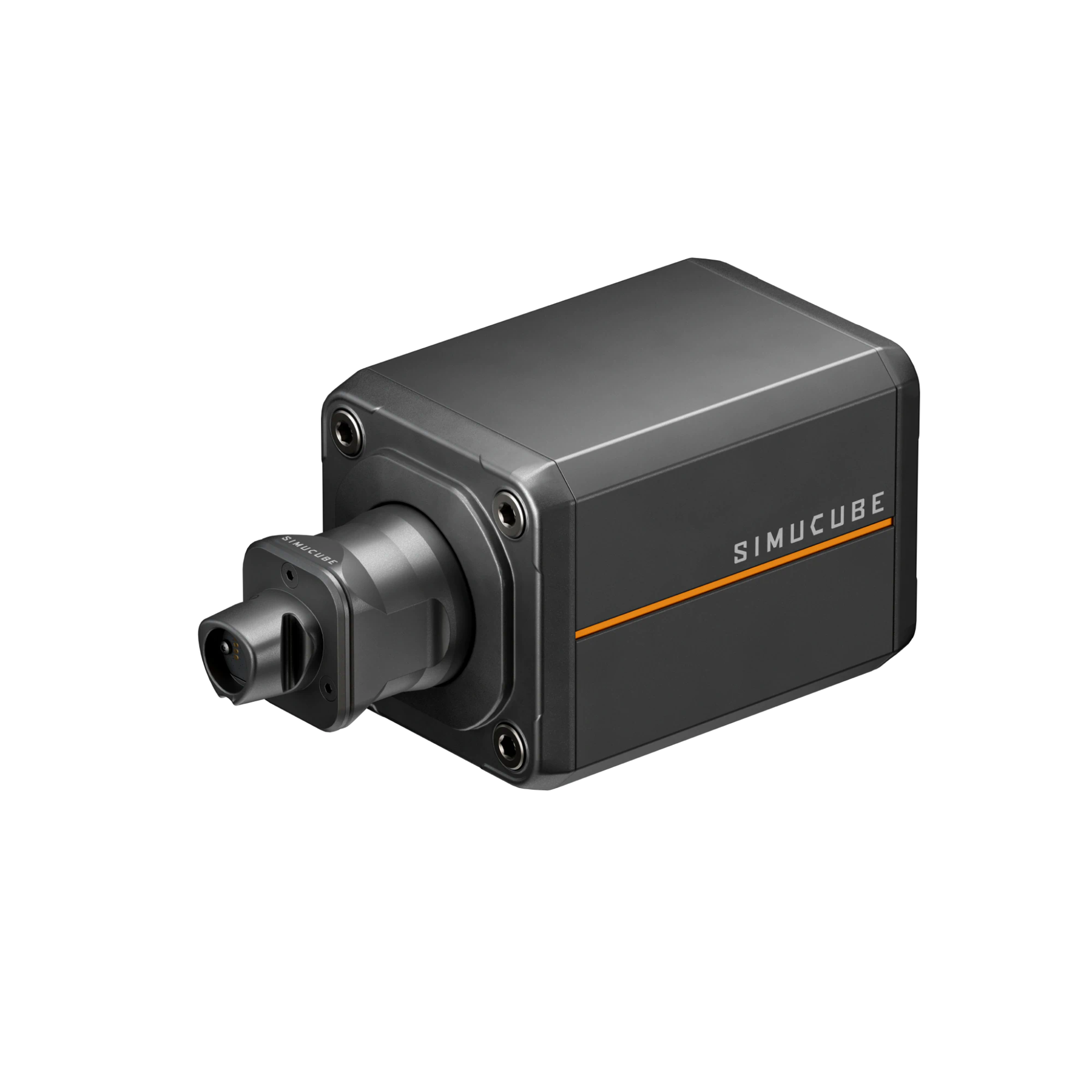

15 Nm maximum torque, 23-bit absolute angle sensor (over 8 million steps), direct drive optimized SPM motor. Weight 8.7 kg, 135 x 135 x 278 mm including the Link Quick Release.
A GST280 280 W supply. The box includes the power supply and an AC power cord.
The wheelbase, power supply, AC power cord, RJ45 cable, Link Control Box with cable, fastener kit (washers, M5, M6 and M8 screws, M5 T-slot nuts, hook and loop tie) and a Quick Start Guide. The Link Quick Release (wheel side) and the Link Hub are not included unless you pick a bundle.
Yes. One Simucube Link Hub is required to operate the base because it cannot connect straight to a PC. You also need a wheel-side Link Quick Release to attach a wheel. Add an Ethernet switch if you also run ActivePedals.
Front mount with four M8 holes on a 135 mm bolt circle, or bottom mount with T-slot nuts on a 78.4 mm pattern. Use all four points and the supplied washers. Front screws about 20 Nm, bottom screws about 10 Nm.
Simucube Tuner, a Windows installer from Simucube. It updates firmware on first launch and handles settings and profiles.

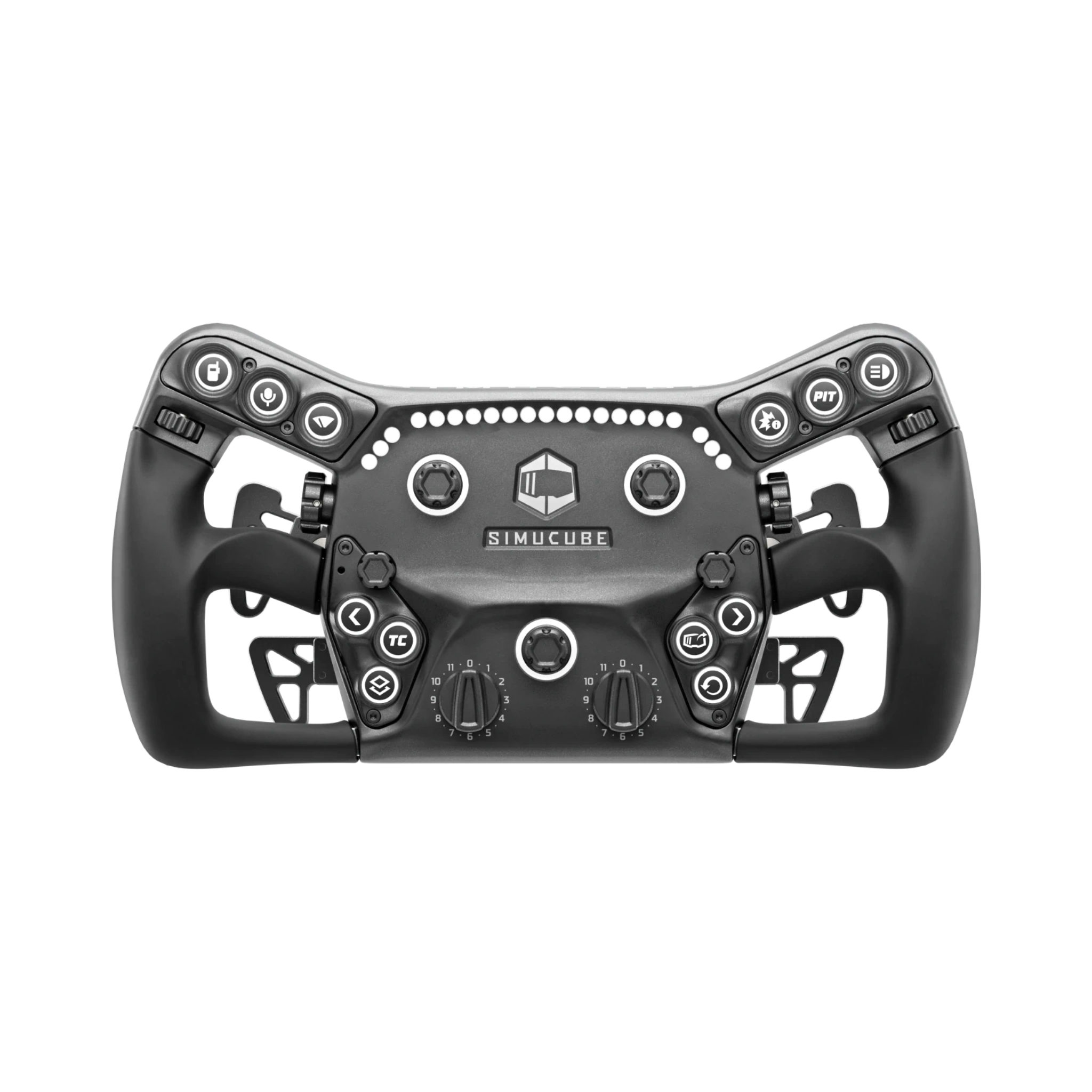

Simucube Wireless Wheels (via Link Hub and Link Quick Release), Link wheels and USB wheels. 70 mm bolt patterns fit the Link Quick Release directly. 50.8 mm patterns need the 50.8 to 70 mm adapter. It is PC only, not PS4, PS5 or Xbox.
Torque: 15 Nm
Encoder: 23-bit
Weight: 8.7 kg
Dimensions: 135 x 135 x 278 mm
Quick release: Optional (Simucube Link QR, sold separately)
Torque: 25 Nm
Encoder: 23-bit
Weight: 11.0 kg
Dimensions: 135 x 135 x 303 mm
Quick release: Optional (Simucube Link QR, sold separately)
Torque: 21 Nm
Encoder: 21-bit
Weight: 9.0 kg
Dimensions: 249 x 140 x 135 mm
Quick release: Moza QR
Mounting: Bottom, front or side mount
Material: Aluminum alloy
Torque: 18 Nm
Encoder: 21-bit
Weight: 8.63 kg
Dimensions: 130 x 110 x 317 mm
Quick release: QR50, QR70, QR-A
Mounting: Bottom or side; front with adapter (sold separately)
Material: Die-cast aluminum
