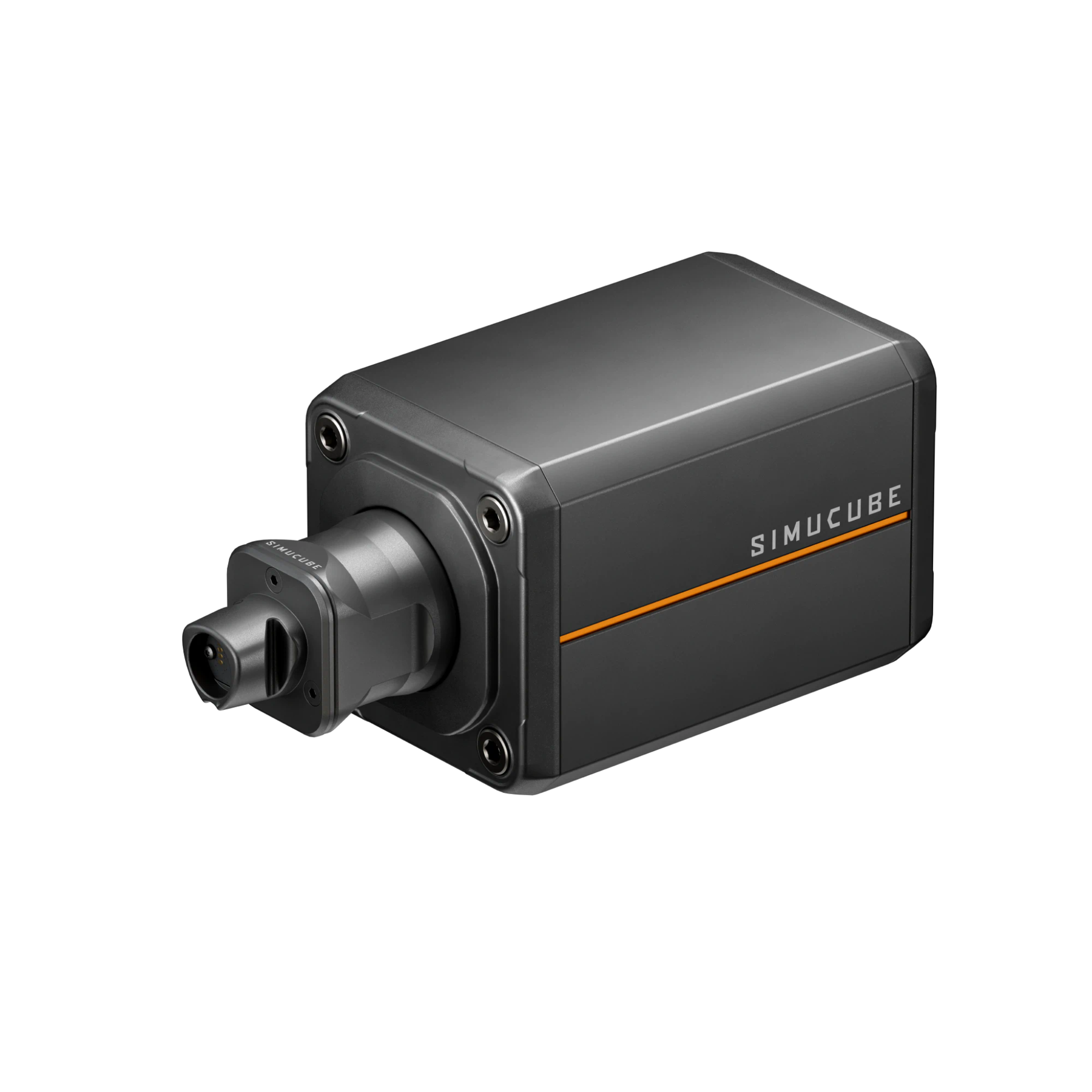

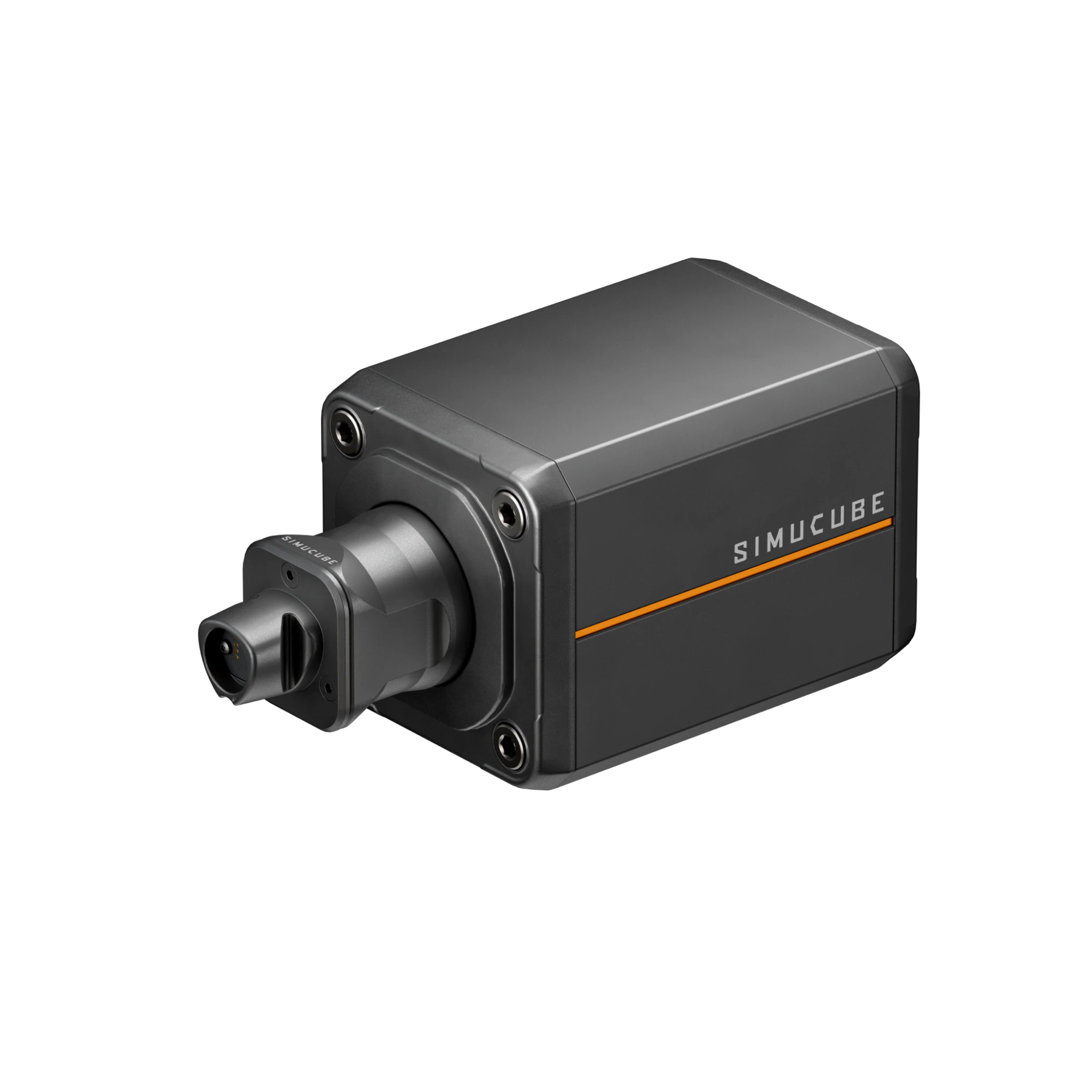

Facing left

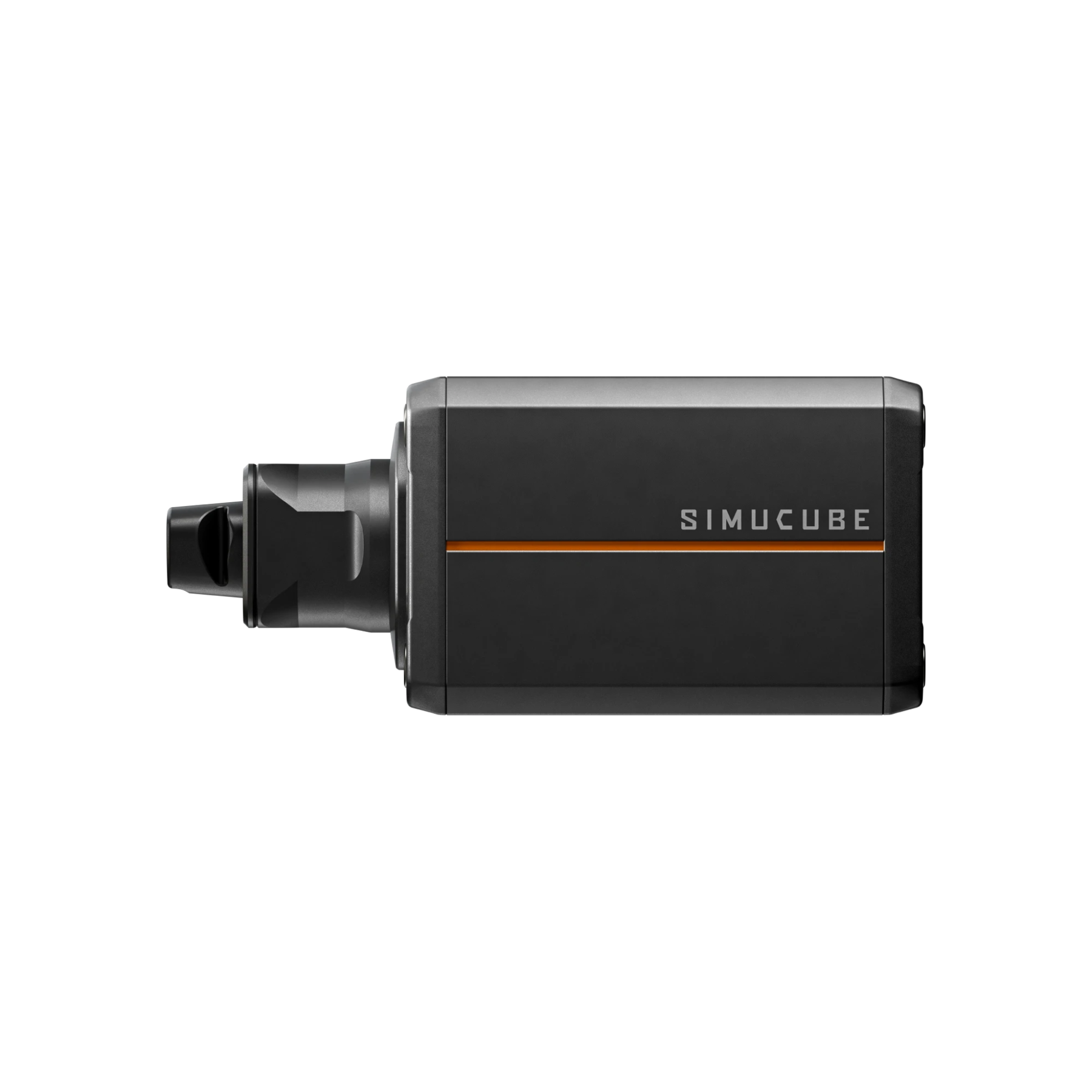

Side view facing left

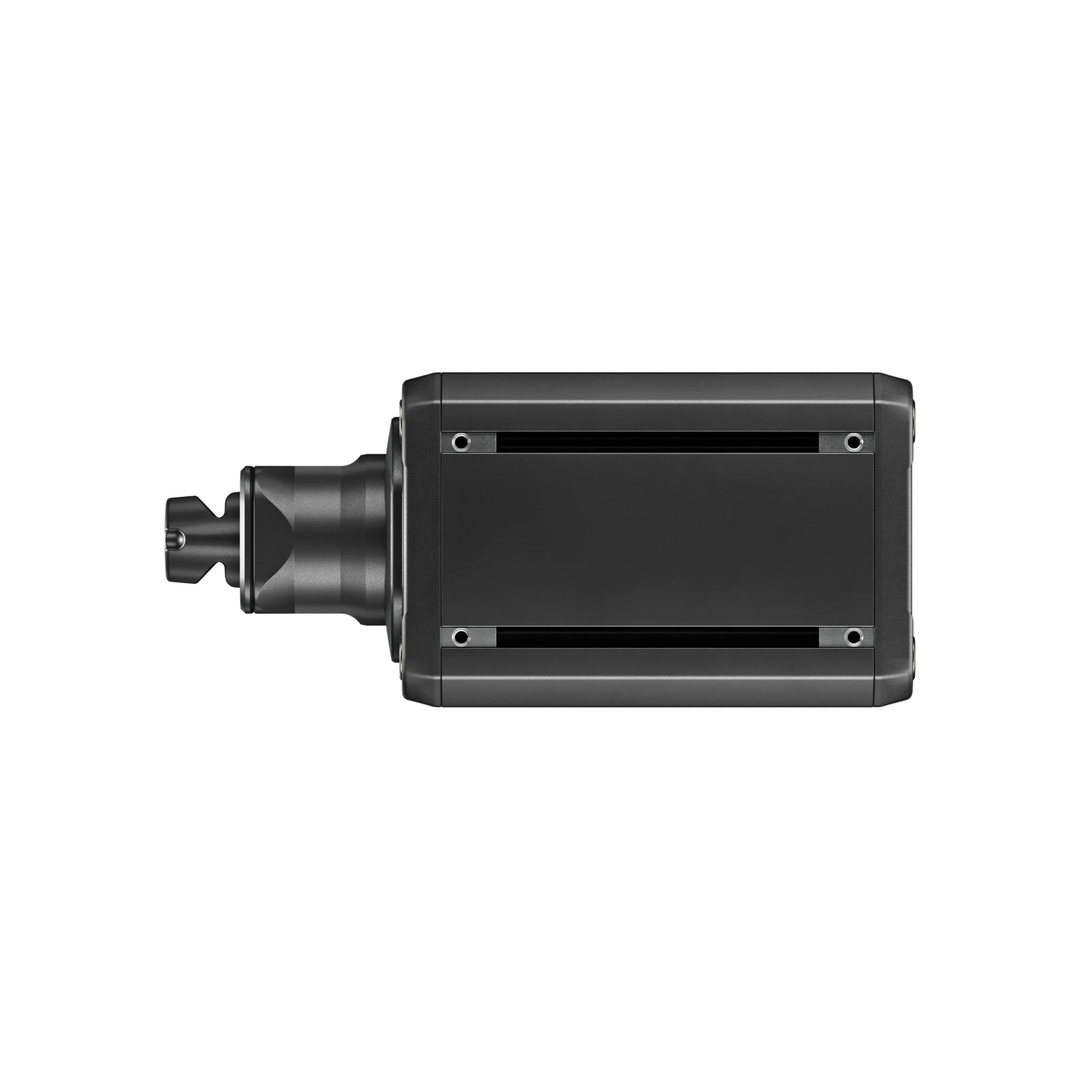

Bottom view facing left

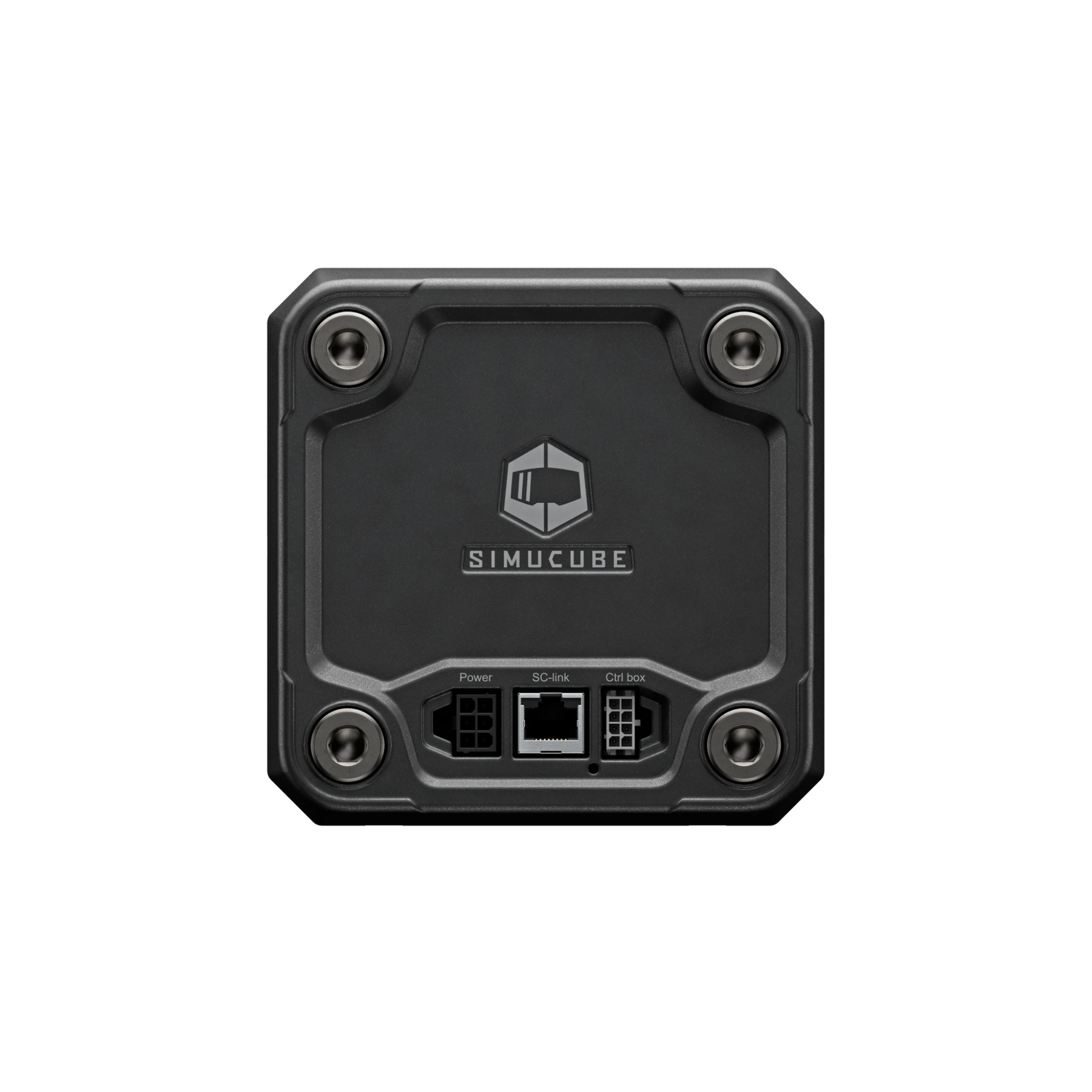

Rear view

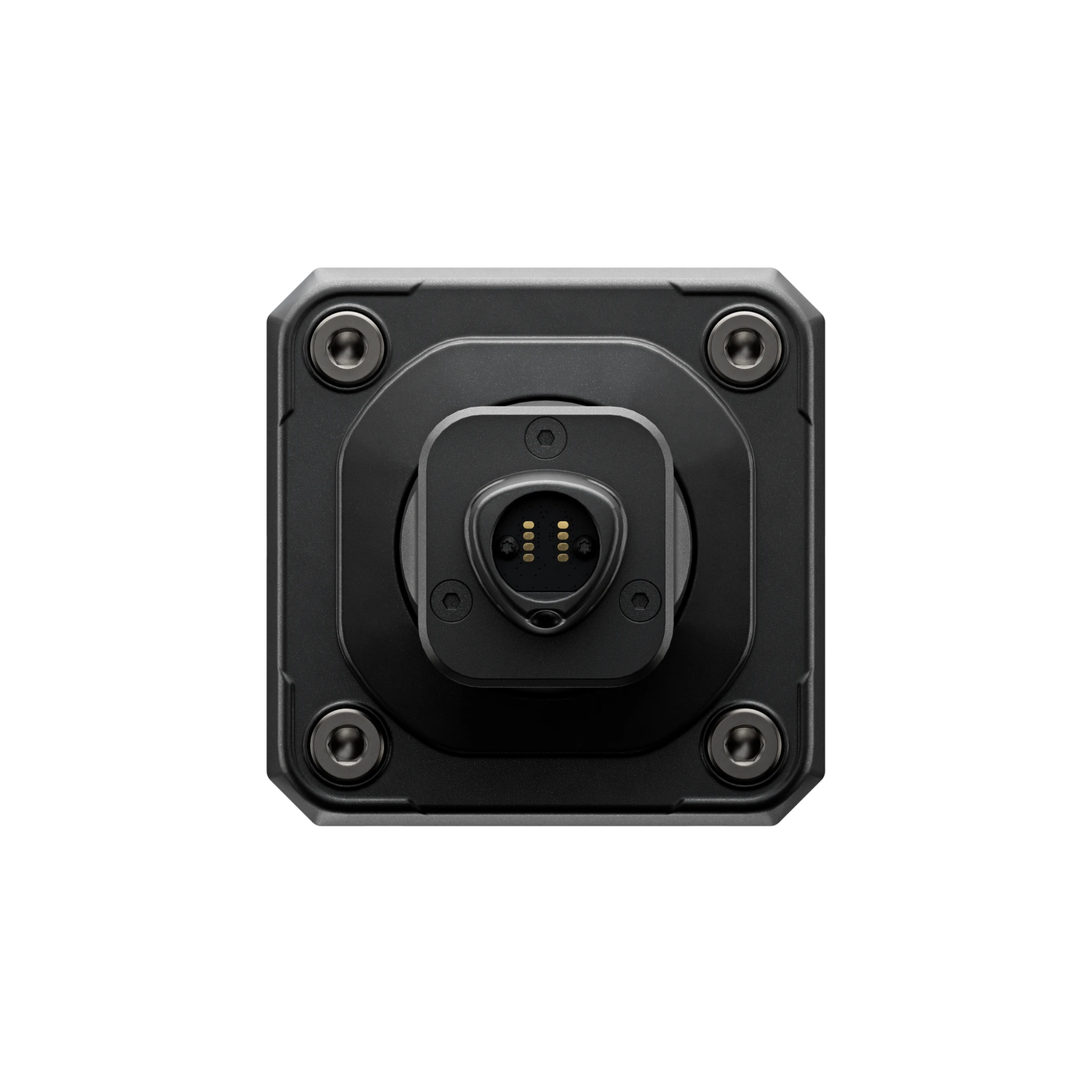

Facing forward view

Simucube 3 Pro Direct Drive Wheel Base 25NM [PRE-ORDER]

TOP RATED CUSTOMER SERVICE
TOP RATED CUSTOMER SERVICE
4.9 OUT OF 5 STARS
4.9 OUT OF 5 STARS
TRUSTED BY SIM RACERS WORLDWIDE
TRUSTED BY SIM RACERS WORLDWIDE
18,000+ ORDERS SHIPPED
18,000+ ORDERS SHIPPED
SAFE & SECURE CHECKOUT
SAFE & SECURE CHECKOUT

  • 3 Year Warranty
  • Used By Professionals
  • SHIPS FROM NEW JERSEY USA
Regular price$1,599.00
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon



This Simucube 3 Wheel Base is the new flagship direct drive force feedback wheelbase: the engine that turns steering from an accessory into a professional racing instrument, as close as sim racing gets to a real race car.

  • Precise, smooth, industry-leading direct drive force feedback (25 Nm)
  • Industrial-grade servo motors engineered exclusively for Simucube
  • Enhanced detail, telemetry‑based effects like ABS, RPM, and road texture
  • Completely re-engineered the control algorithm for maximum accuracy and silent performance
  • Front & bottom mounting

Simucube 3 Wheel Base delivers even more precise, smooth, industry-leading force feedback, with easier configuration, and exceptionally efficient premium industrial-grade servo motors engineered exclusively for Simucube. Push with everything you’ve got. It will never hold you back.

Note! One Simucube Link Hub is required to operate. If you do not own Simucube Link Hub, please choose the option “Including Simucube Link”.

If you want to use more than one Simucube Link Hub device such Simucube 3 and ActivePedals, please purchase the Teltonika Ethernet Switch.

Dimensions

  • Wheel base dimensions: 135 x 135 x 303 mm
  • Package dimensions: 190 x 300 x 390 mm
  • Mounting: Front and Bottom
  • Mounting hole pattern DIA: 135 mm and 78,4 mm
  • Flange centering feature DIA: 110 mm
  • Wheel base weight: 11 kg

Specifications

  • Motor type: High response speed, Direct drive optimized SPM motor
  • Max torque: 25 Nm
  • Angle sensor: 23-bit absolute (8 000 000 steps)
  • Power supply: 360 W (450 W peak)
  • Warranty: 3 years

PC Compatible Only

Simucube Ships within North America Only

For delivery outside of the USA we do not collect VAT or any import taxes. This amount will be determined by the shipping company when it is imported into your country and will be due before delivery.
