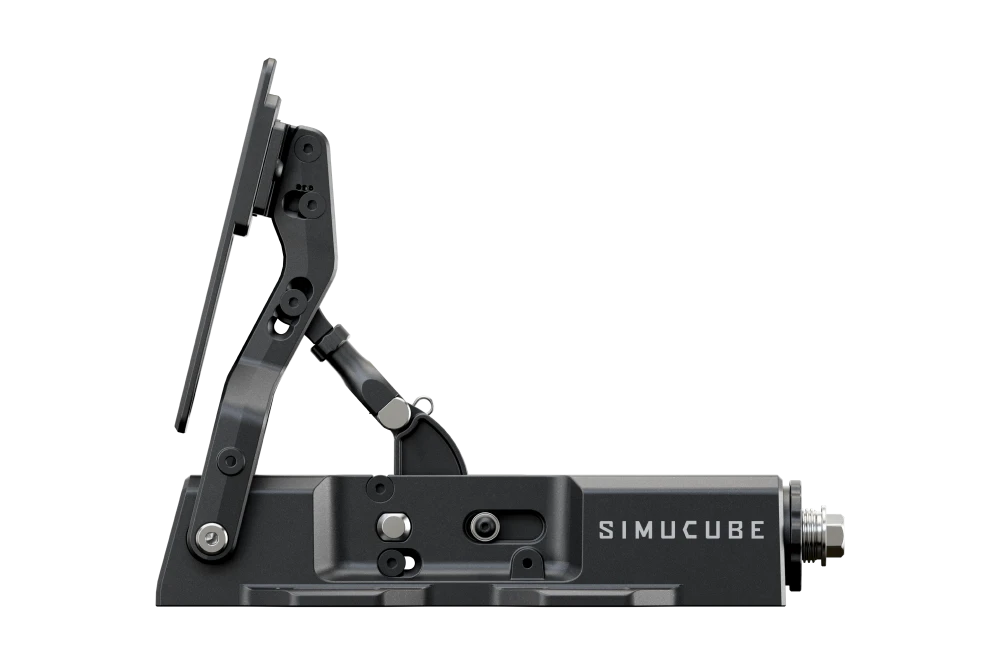

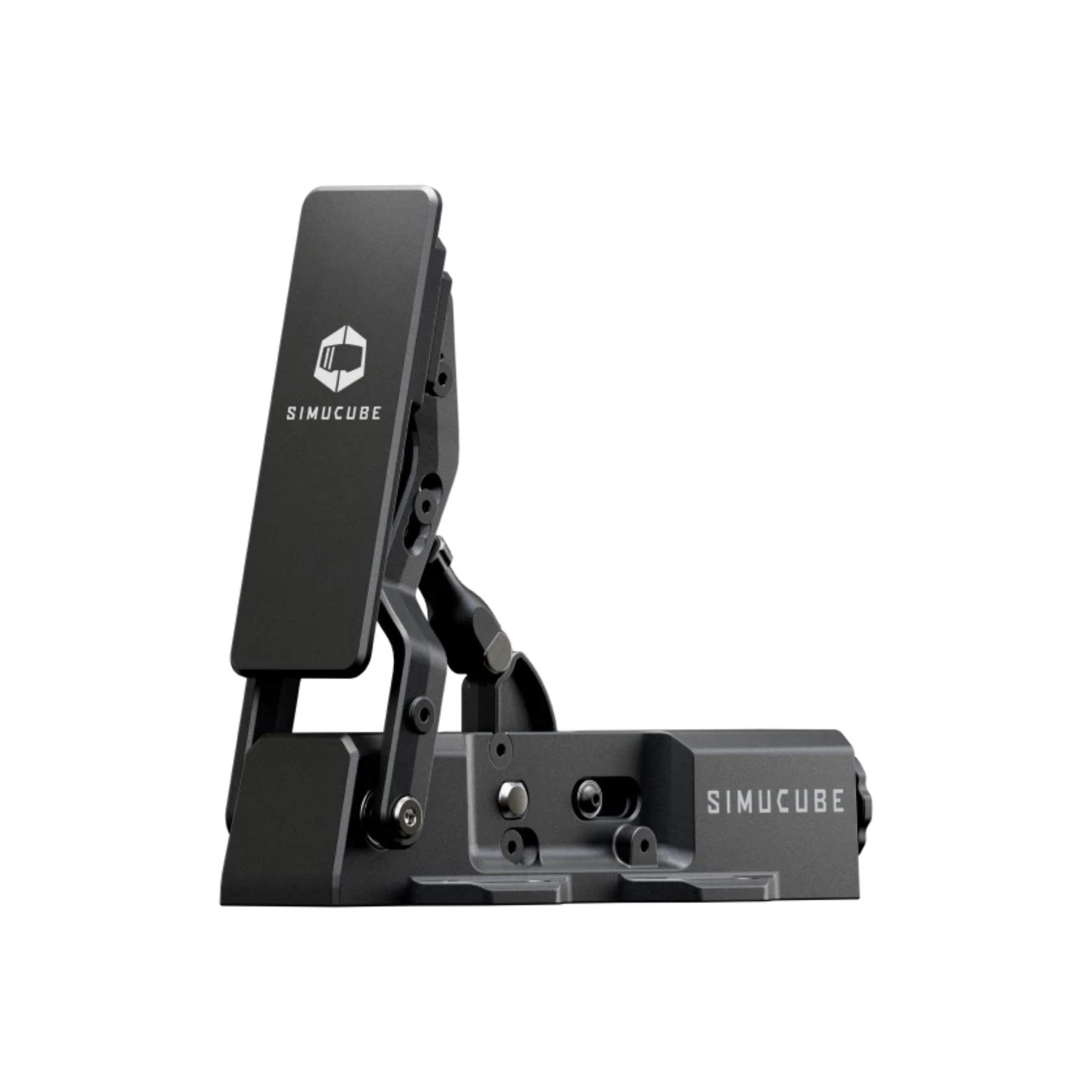

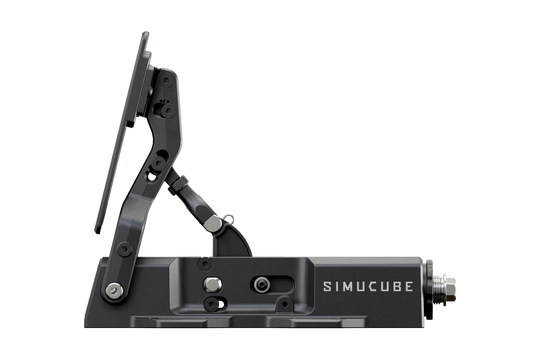

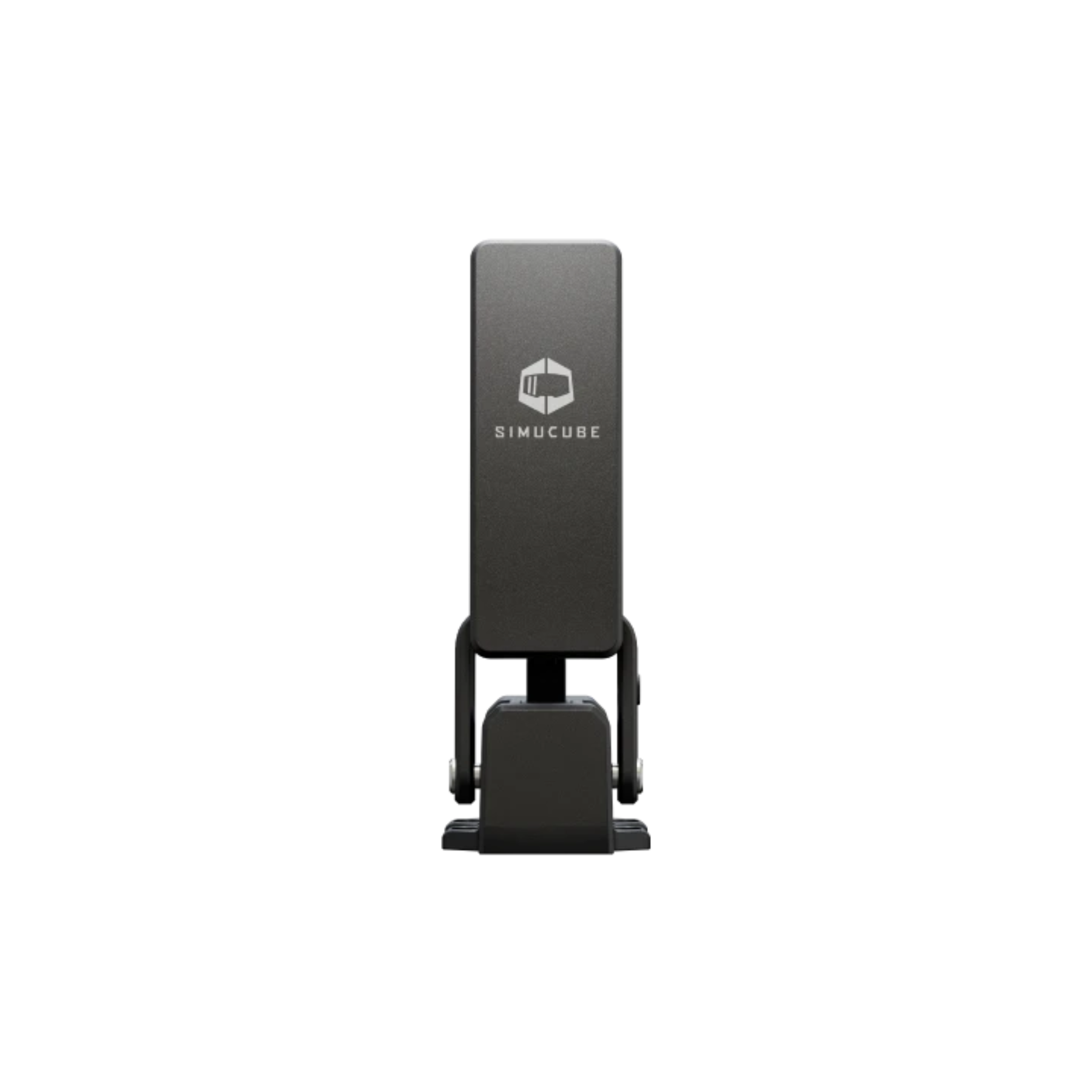

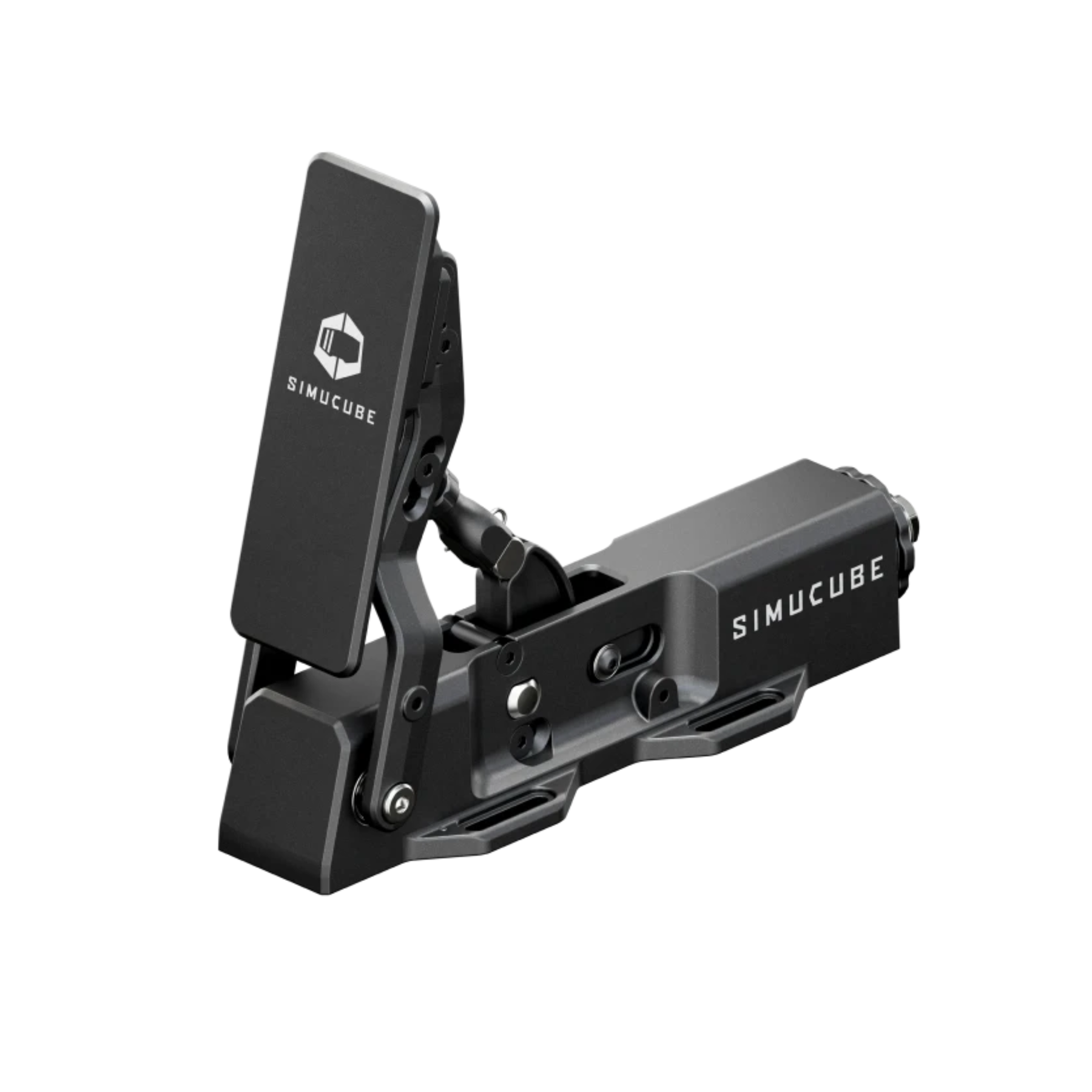

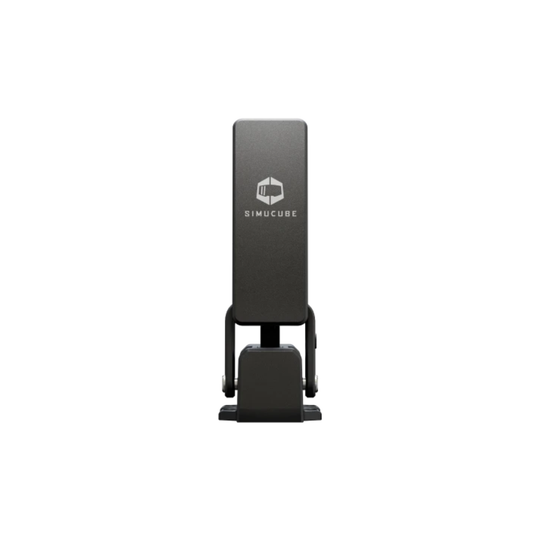

Simucube Co-Pedal

The Pedal That Goes Next to an ActivePedal

The Simucube Co-Pedal is a passive pedal built to sit alongside a Simucube ActivePedal. So you get a matched throttle or clutch without paying for a second active unit.

It arrives preassembled as a throttle. However, the clutch parts are in the box. Therefore you can switch it over whenever your setup changes.

One Pedal, Two Jobs

Converting to a clutch means swapping three parts. Each one is included:

• Clutch pedal face, the same part used on the ActivePedal Ultimate
• Clutch spring, stiffer than the throttle spring
• Clutch Arc profile

Because the Arc profile is what shapes the force curve, a clutch does not just feel heavier. In addition, it builds resistance differently through the travel.

Adjustable Where It Counts

Travel sets to 30mm, 50mm or 70mm. Meanwhile rest angle runs from 4 to 14 degrees and preload from 0 to 13mm.

Pedal face tilt adjusts too. As a result, you can match the Co-Pedal to how your ActivePedal is already set rather than working around it.

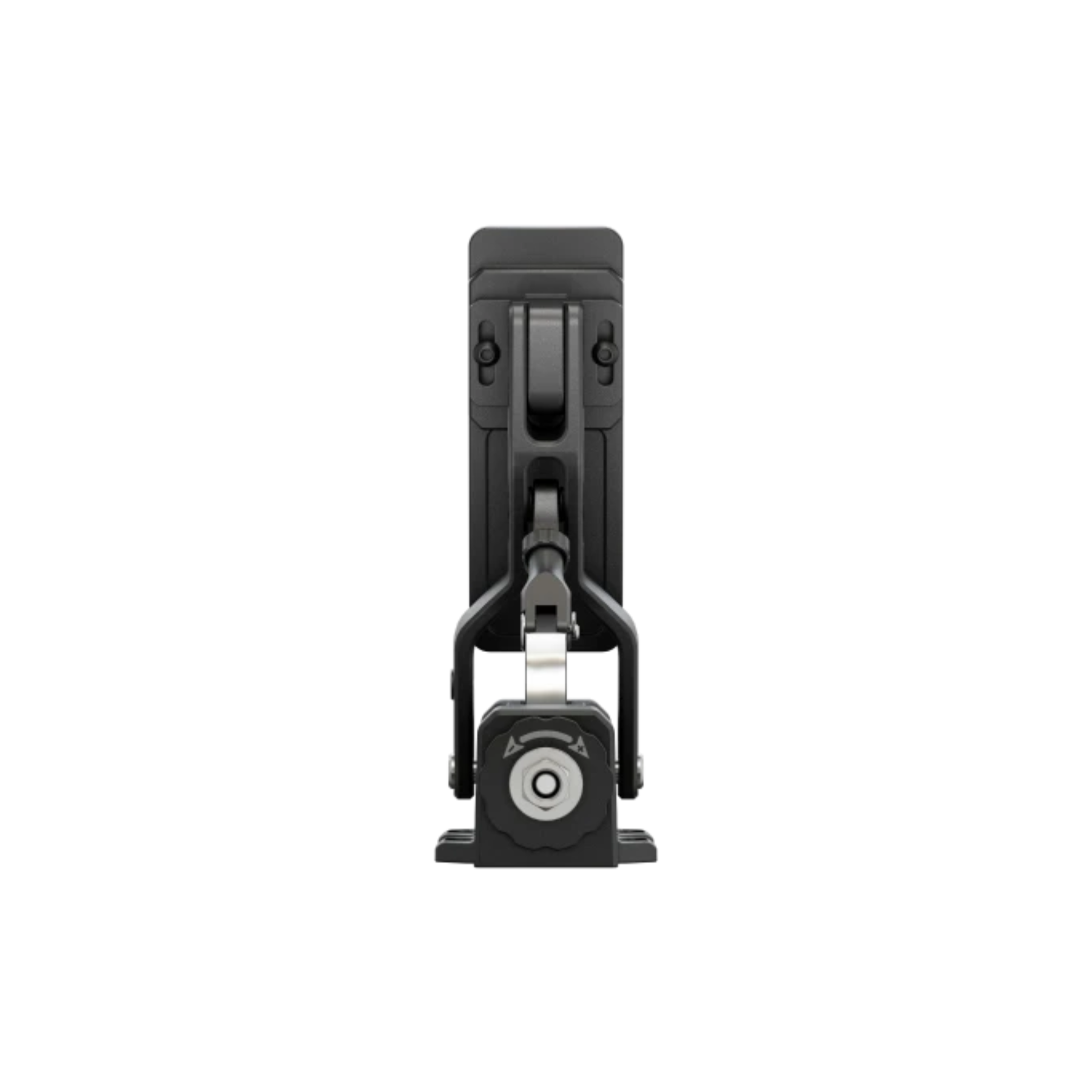

All the tools come in the box, including the special tool for the preload screw.

Consistent Feedback, No Dead Zones

Simucube uses a patented mechanical solution with Arc profiles. So sensor output stays consistent across the full pedal travel. Therefore there is no vague region at the top or bottom of the stroke.

The redesigned shell frame reduces flex as well. That keeps the feel the same whether it is set up as a light throttle or a heavy clutch.

Connecting the Simucube Co-Pedal

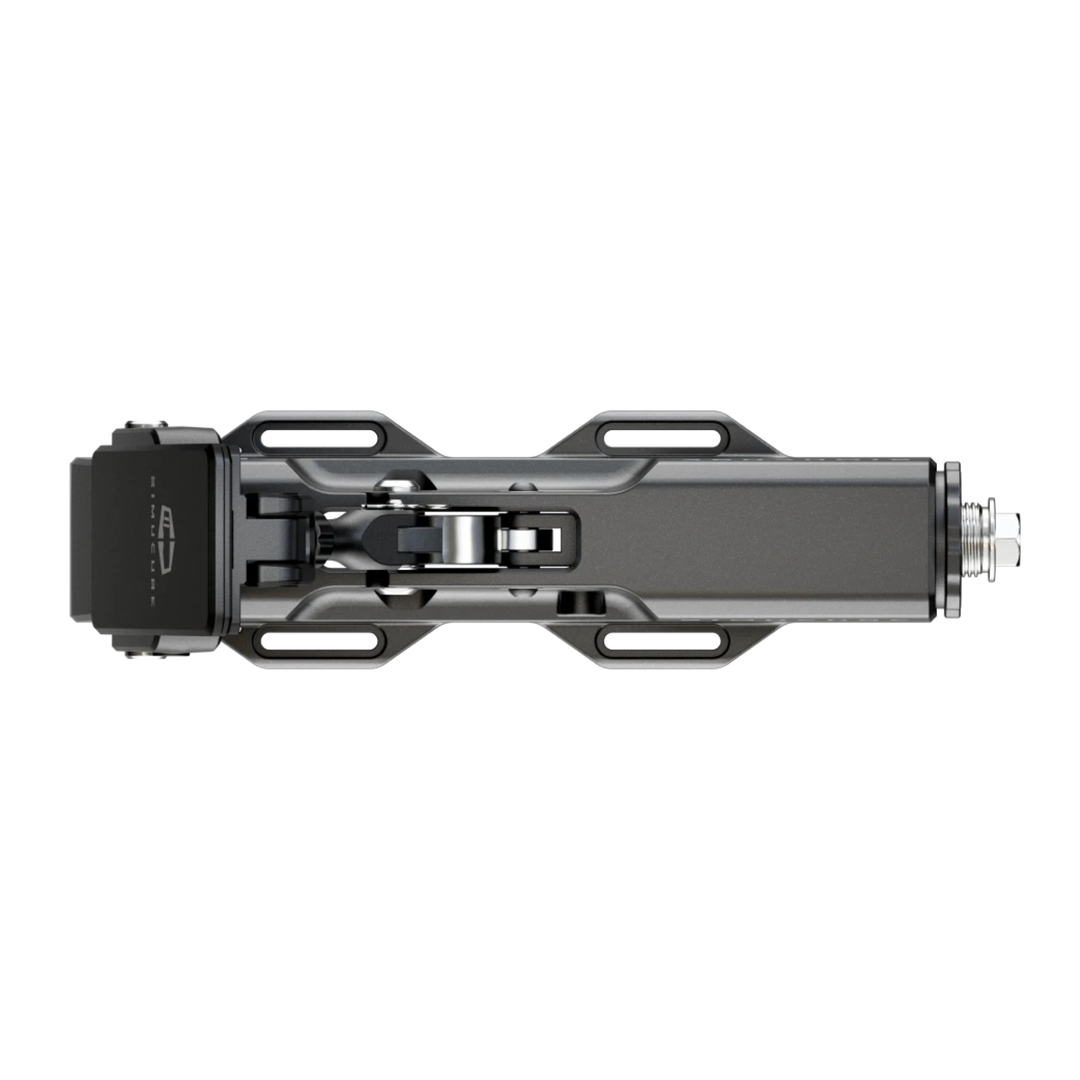

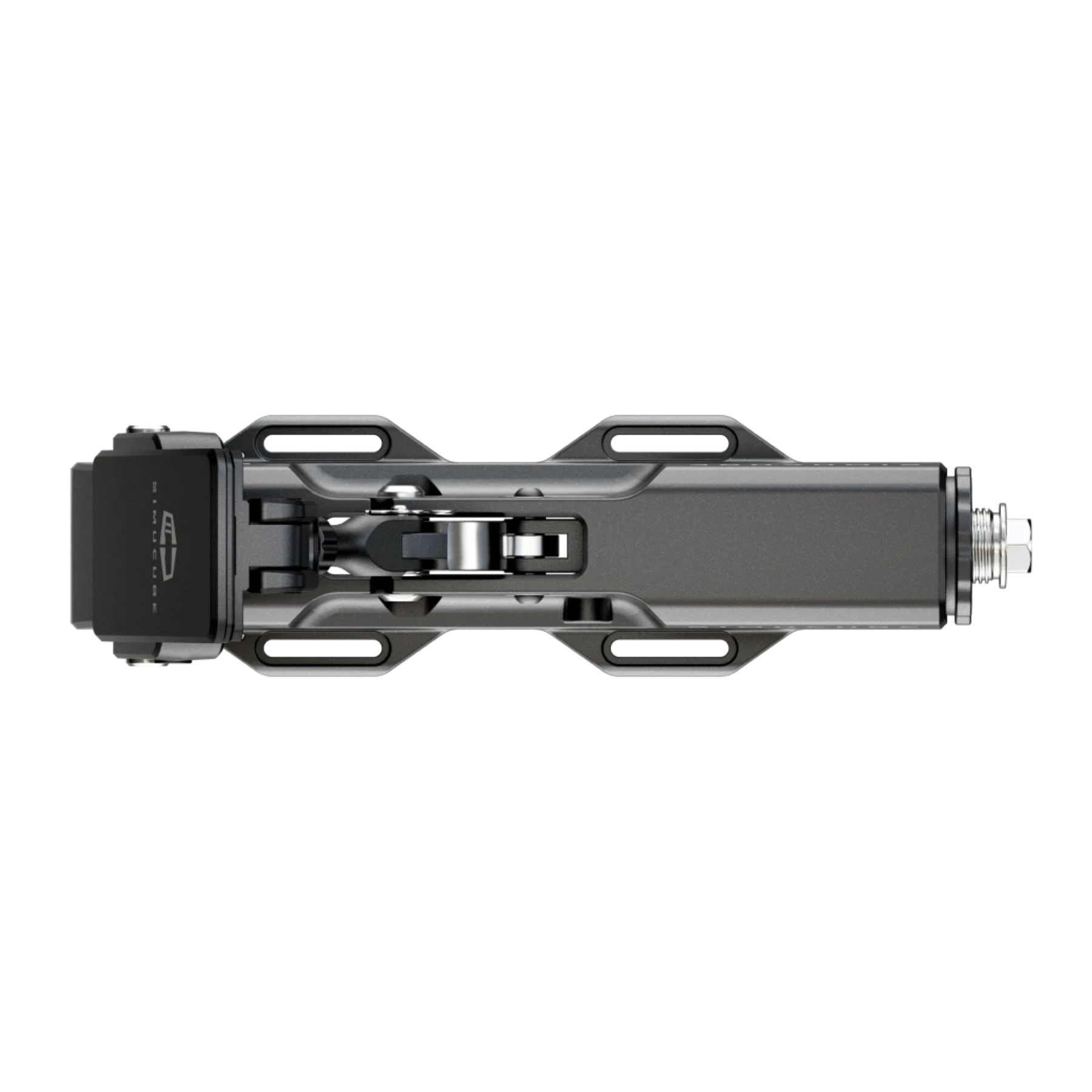

A 60cm RJ25 cable connects it to an ActivePedal. Mounting is four M5 slots, and fasteners for both aluminum profile and baseplate mounting are supplied.

Why Buy From Apex Sim Racing

Apex Sim Racing is an authorized Simucube retailer in the United States. So every order ships with full US warranty coverage and US-based technical support. In short, backed by 25,000+ orders shipped.

Complete Your Setup

Pair it with the ActivePedal Pro or the ActivePedal Ultimate.
