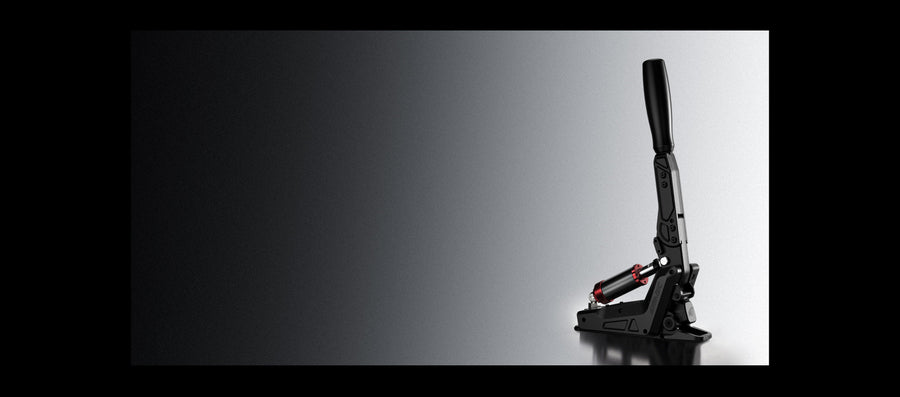

Simagic TB-NEO Handbrake

The Simagic TB-NEO: Built to Evolve

The Simagic TB-NEO Handbrake is built around an expandable modular platform, so the handbrake you buy today is not the one you are stuck with. Swap elastomers to change the resistance, add a hydraulic module for damped response, or fit a haptic reactor for telemetry-driven feedback.

Most handbrakes give you one feel and that is the end of it. This one is designed to be taken apart and rebuilt around how you drive.

Full-Range Adaptive Sensing

Simagic's patented Full-Range Adaptive Sensing Technology optimises gain across the entire pull. It captures fine movement at the start of the travel while staying stable under heavy load at the end, so you get smooth, repeatable input from initial engagement through to a full pull.

In practice that means a cleaner signal with fewer fluctuations, which is what makes a handbrake predictable enough to trust mid-drift.

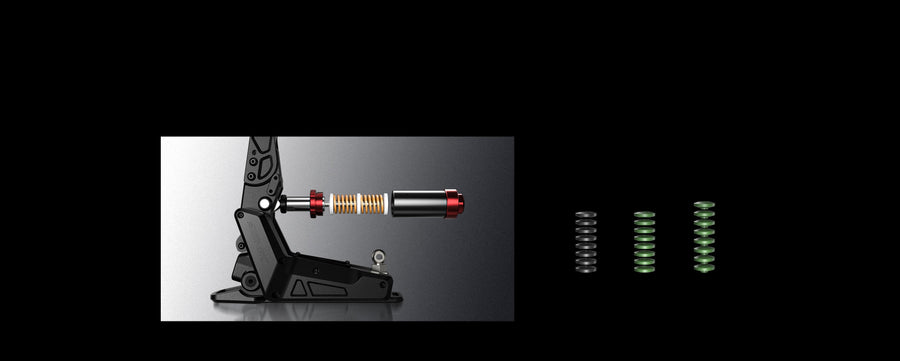

Tune the Feel With Interchangeable Elastomers

The TB-NEO ships ready to use with a versatile standard setup, plus a full set of additional elastomers so you can change the pull without buying anything.

Hardness runs from soft to hard: Yellow Spring, Green T-Type, Green O-Ring, Black O-Ring.

Simagic publish four recommended starting points:

• Light & Smooth Pull — light resistance, quick return, long travel
• Firm Stop — strong return with a direct, solid stop and shorter travel
• Dual-Stage Feel — soft at first, then firmer as you pull
• Hydraulic Feel — damped, linear response that mimics a hydraulic system

Use one as a baseline, then adjust from there.

Five Angles, Two Modes

Switch between horizontal and vertical configurations, then choose from five handle angles. That covers a street setup, a rally position, a drift-focused pull or a track layout without needing a different bracket.

High-Precision Load Cell

A 100kg load cell reading at 12-bit resolution, or 4096 counts. It measures how hard you pull rather than how far, which is what makes the input repeatable pull after pull.

Die-Cast Aluminium Build

Die-cast aluminium construction with precision CNC machining, and a POM grip. Rigid enough that the handbrake itself is not the thing flexing when you pull hard.

Ready for Every Setup

Connect directly to a PC or to a compatible Simagic wheelbase. Dedicated ports for power, data and ecosystem expansion mean you can add P-HPR haptics for telemetry-driven feedback later without rewiring anything.

Tune It in Real Time

Response, travel and input curves are all adjusted through SimPro Manager, with live feedback as you change them. Fit a compatible haptic module and SimHub support unlocks deeper telemetry-driven control.

Room to Grow

Optional modules include the P-HYS and P-HYSi hydraulic systems, P-HPR and P-HPR GT haptic reactors, the P-APS accessories power supply, and the P-ORP elastomer kits. All sold separately, all designed to fit.
