Moza Racing SRP2 Pedals

Load Cell Braking Without the Load Cell Price

The Moza SRP2 Pedals are a two-pedal load cell set built on high-strength steel. The brake uses a 100kg load cell paired with a 15-bit angle sensor. So the pedal reads both how hard you press and how far you travel.

Moza blends the two signals with a sensor fusion algorithm. As a result, the early travel behaves like an angle sensor and the later stages respond to pressure.

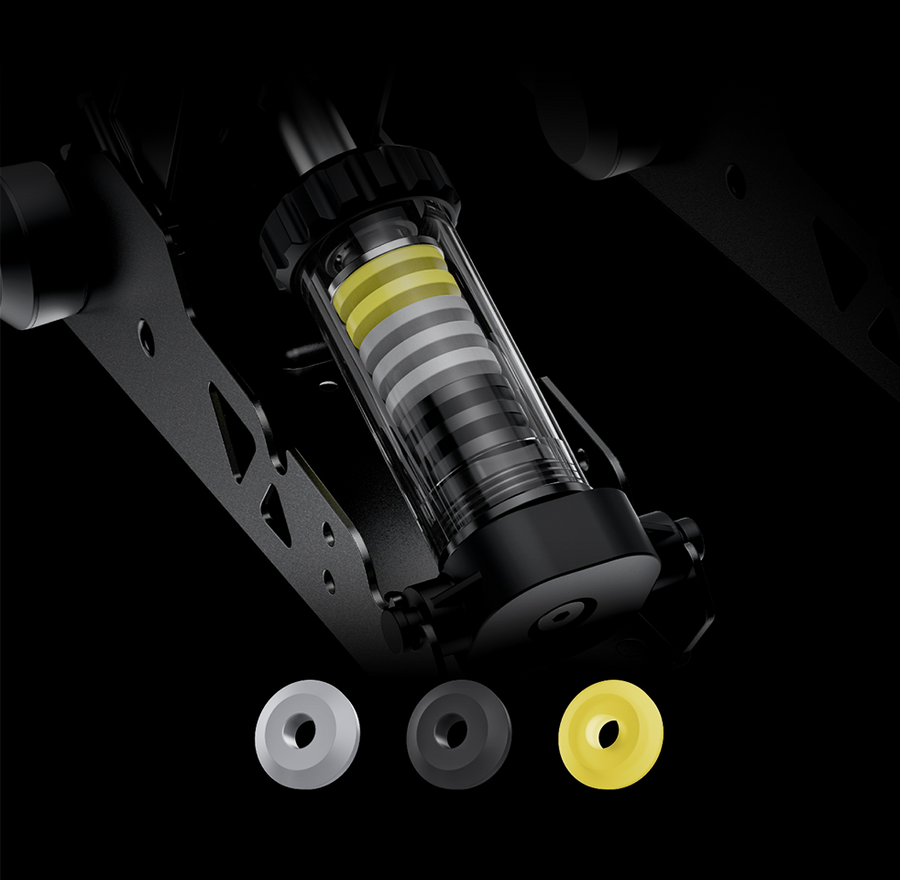

25 Brake Feel Configurations Out of the Box

The brake ships with three elastomer springs. Because they stack in different orders and combinations, Moza counts 25 configurations from the included parts alone.

The optional Performance Kit expands that to over 1,000. In addition, brake pressure engagement point adjusts in software.

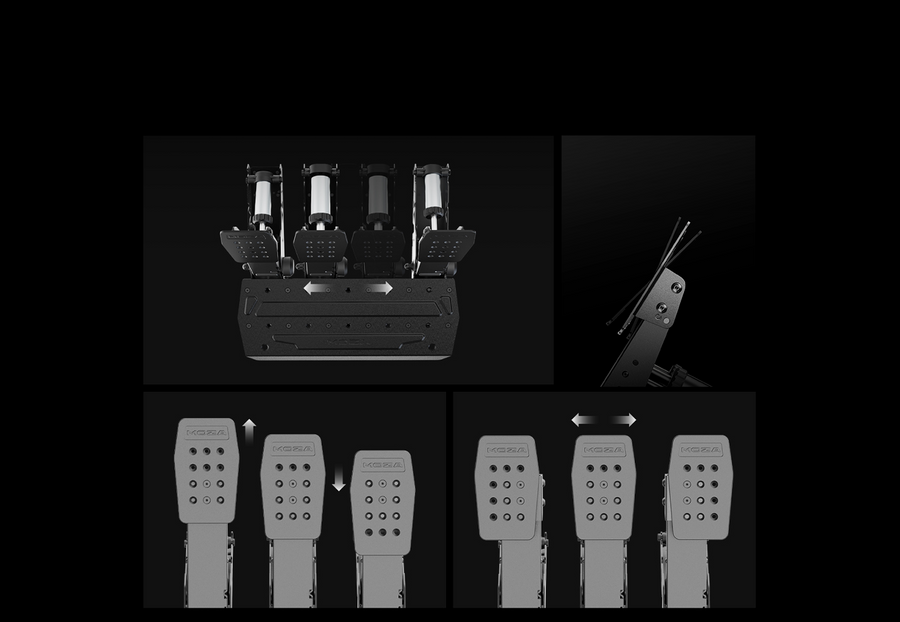

Adjustable Without Tools

• Pedal angle: 10 or 25 degrees
• Left and right spacing: 15 mm
• Height: 36 mm
• Throttle preload: two-step
• Clutch preload: two-step

Moza designed the force adjustments to be tool-free. Therefore you can change brake feel by hand between sessions rather than stripping the pedal down.

Tuning in Moza Pit House

Pedal travel curves, sensitivity and mode switching all adjust in Pit House. Meanwhile a real-time output display shows exactly what the game receives. So you can set a bite point and confirm it rather than guessing.

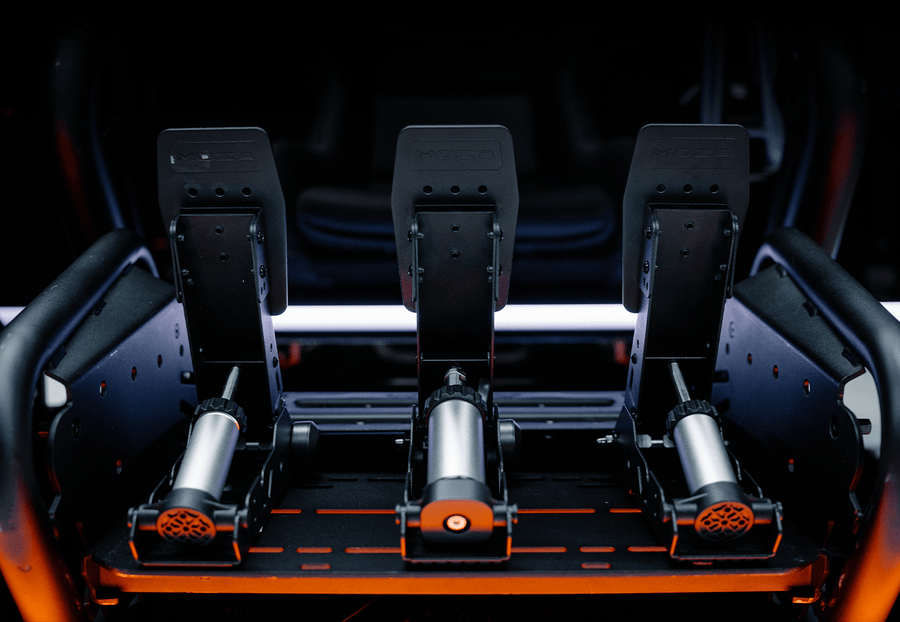

Floor or Cockpit

The pedals sit on the floor or bolt to a cockpit or stand. Anti-slip pads on the base reduce movement. However, on a hard floor under heavy braking, the optional rear support bracket is worth adding.

Connecting the Moza SRP2 Pedals

They connect directly to a PC over USB. Because the connection is standard USB, Moza states they work with other sim racing brands and not only Moza bases.

Why Buy From Apex Sim Racing

Apex Sim Racing is an authorized Moza Racing retailer in the United States. So every order ships with full US warranty coverage and US-based technical support. In short, backed by 25,000+ orders shipped.

Complete Your Setup

Add the SRP2 Clutch Pedal for three pedals, the CRP2 and SRP2 Performance Kit for more brake range, or the SRP2 Rear Support Bracket for floor use.
