Name: Moza Racing SRP2 Pedals
Brand: Moza Racing
Price: 45.9 USD
Availability: InStock
Rating: 4.8 (4 reviews)

Moza Racing SRP2 Pedals: frequently asked questions

What is included with the SRP2 pedals?

The base set is the throttle and brake pedals, a toolkit and a warranty card. The clutch is sold separately.

How do they connect?

The SRP2 connects directly to a PC over USB. MOZA says it works with all sim racing brands, not only MOZA gear.

Can I add a clutch?

Yes. The SRP2 Clutch Pedal is an add-on for the SRP2 series only. MOZA says it is not compatible with the R3 or R5 simulator series or the SRP Lite2.

How does the brake sense pressure?

It uses a hybrid of a 0 to 100 kg load cell and a 15-bit angle sensor. The angle sensor covers early travel and the load cell covers later travel.

How can I change the brake feel?

The brake ships with elastomers for 25 feel configurations. The optional Performance Kit expands this to over 1,000 setups. The brake engagement point is also adjustable.

How do I adjust and mount the pedals?

Pedal face angle has two stages (10 or 25 degrees), spacing is plus or minus 15 mm, and height adjusts over 36 mm. They can go on a cockpit, a stand or the floor, with anti-slip pads on the base.

How do I calibrate them?

Use Set Min and Set Max on the Pit House main page, or recalibrate and adjust stroke on the pedal function page.

The pedals do not respond.

Use a stable USB port and confirm they appear under Windows USB Game Controllers. Replug the USB and check the sensor signal lines are in the correct control box sockets.

Moza SRP2 Pedals load cell sim racing pedal set

Moza SRP2 Pedals throttle and brake on a high-strength steel base

Moza SRP2 Pedals brake pedal with 100kg load cell

Moza SRP2 Pedals elastomer stack for brake feel adjustment

Moza SRP2 Pedals height and spacing adjustment detail

Moza SRP2 Clutch Pedal mounted alongside the SRP2 throttle and brake

Moza SRP2 Clutch Pedal, third pedal add-on for the SRP2 pedal set

Moza SRP2 Clutch Pedal side view showing the enclosed spring-loaded design

Moza SRP2 Clutch Pedal two-stage preload adjustment detail

Version

SRP2 3 Pedal

SRP2 2 Pedal

SRP2 Clutch Add-On

100kg load cell with 15-bit angle sensor fusion

25 brake feel configurations from the included elastomers

Tool-free angle, spacing, height and preload adjustment

SHIPS FROM NEW JERSEY USA

$194.90

Shipping calculated at checkout.

%3Cp%3EEarn%20up%20to%20%3Cstrong%3E[points_amount]%3C/strong%3E%20with%20this%20purchase%3C/p%3E

Load Cell Braking Without the Load Cell Price

The Moza SRP2 Pedals are a two-pedal load cell set built on high-strength steel. The brake uses a 100kg load cell paired with a 15-bit angle sensor. So the pedal reads both how hard you press and how far you travel.

Moza blends the two signals with a sensor fusion algorithm. As a result, the early travel behaves like an angle sensor and the later stages respond to pressure.

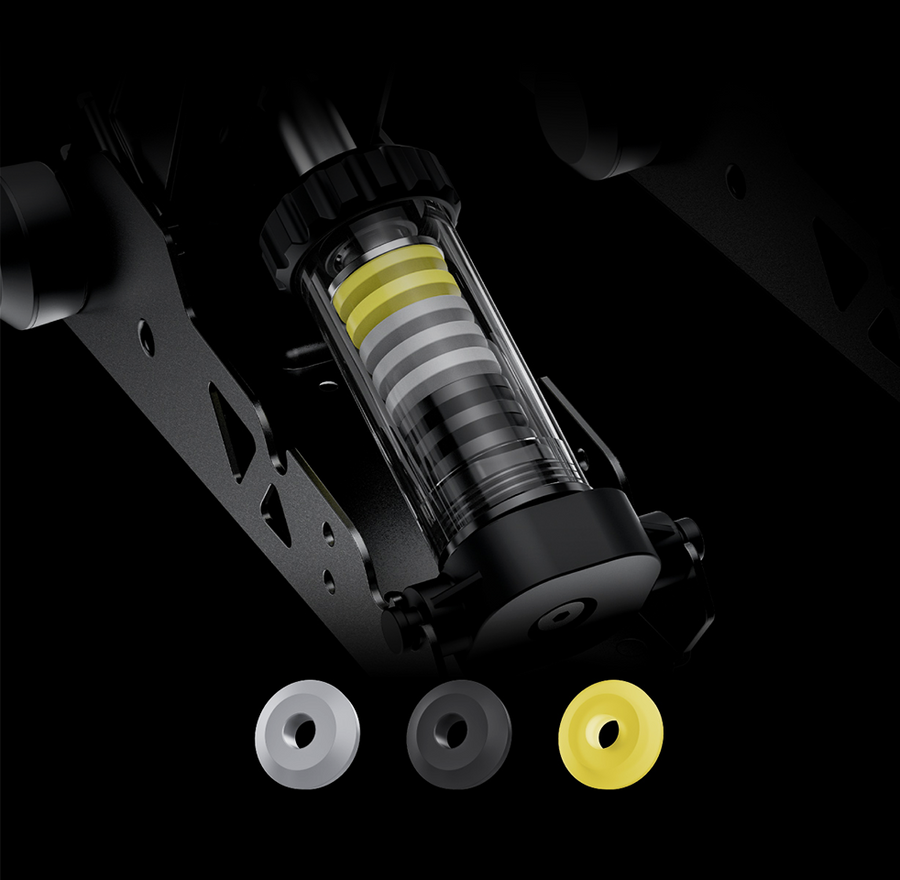

25 Brake Feel Configurations Out of the Box

The brake ships with three elastomer springs. Because they stack in different orders and combinations, Moza counts 25 configurations from the included parts alone.

The optional Performance Kit expands that to over 1,000. In addition, brake pressure engagement point adjusts in software.

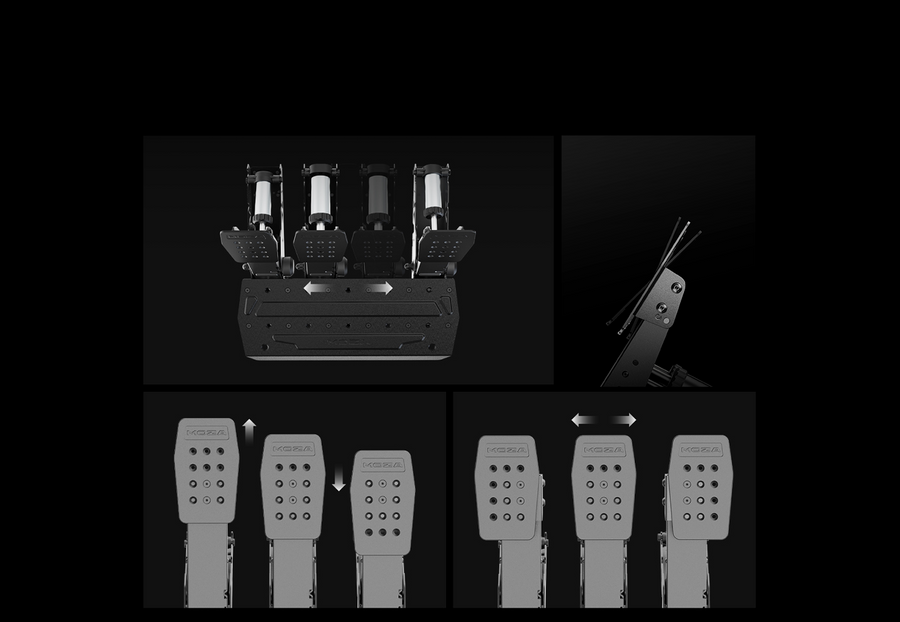

Adjustable Without Tools

Pedal angle: 10 or 25 degrees
Left and right spacing: 15 mm
Height: 36 mm
Throttle preload: two-step
Clutch preload: two-step

Moza designed the force adjustments to be tool-free. Therefore you can change brake feel by hand between sessions rather than stripping the pedal down.

Tuning in Moza Pit House

Pedal travel curves, sensitivity and mode switching all adjust in Pit House. Meanwhile a real-time output display shows exactly what the game receives. So you can set a bite point and confirm it rather than guessing.

Floor or Cockpit

The pedals sit on the floor or bolt to a cockpit or stand. Anti-slip pads on the base reduce movement. However, on a hard floor under heavy braking, the optional rear support bracket is worth adding.

Connecting the Moza SRP2 Pedals

They connect directly to a PC over USB. Because the connection is standard USB, Moza states they work with other sim racing brands and not only Moza bases.

Why Buy From Apex Sim Racing

Apex Sim Racing is an authorized Moza Racing retailer in the United States. So every order ships with full US warranty coverage and US-based technical support. In short, backed by 25,000+ orders shipped.

Complete Your Setup

Add the SRP2 Clutch Pedal for three pedals, the CRP2 and SRP2 Performance Kit for more brake range, or the SRP2 Rear Support Bracket for floor use.
